ICS-2000

特長

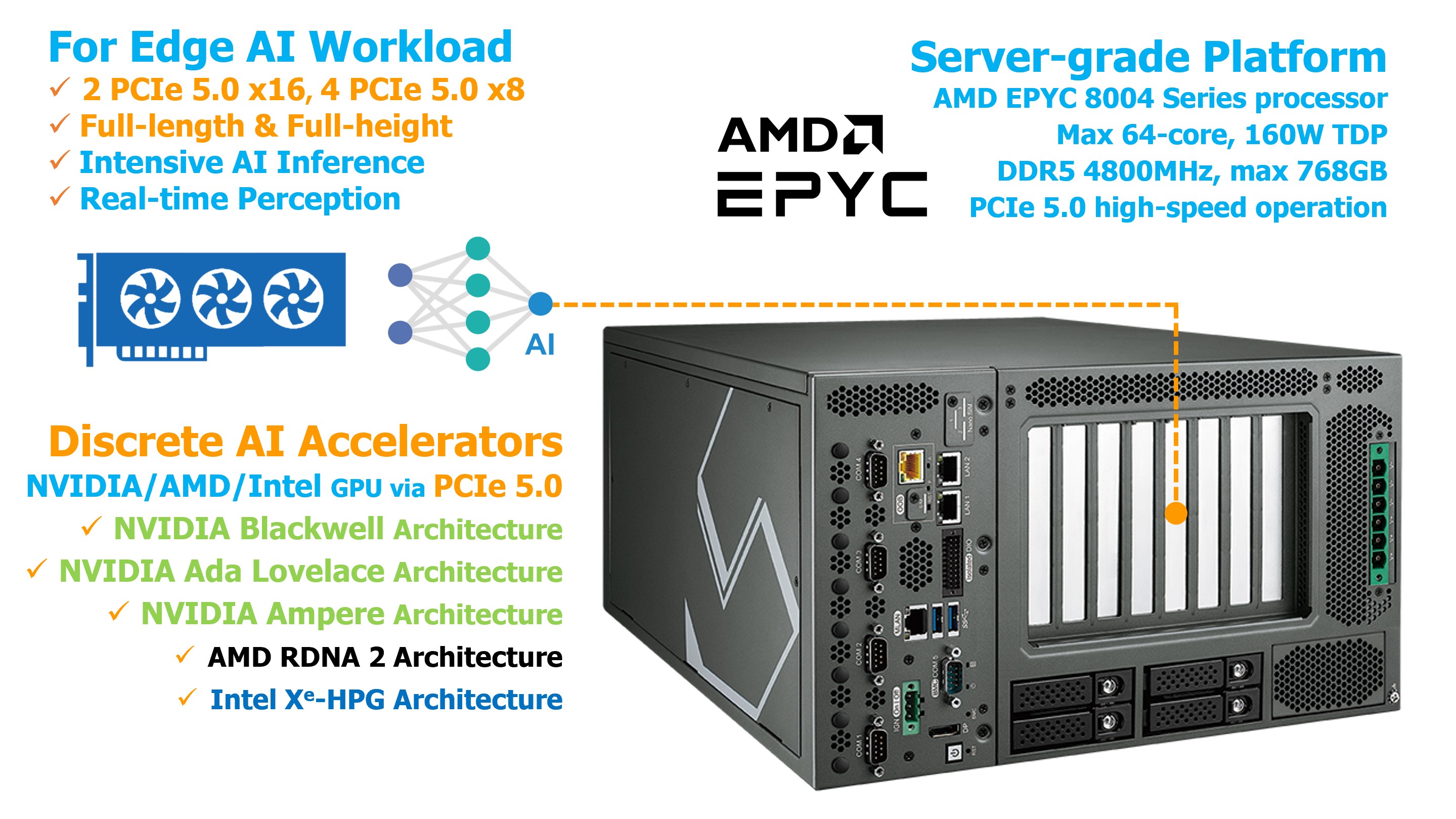

    • Server-level Platform: AMD EPYC™ 4th Gen 8004 "Siena" Processor, up to 64-core
    • 6 DDR5 4800MHz Memory supports up to 768GB

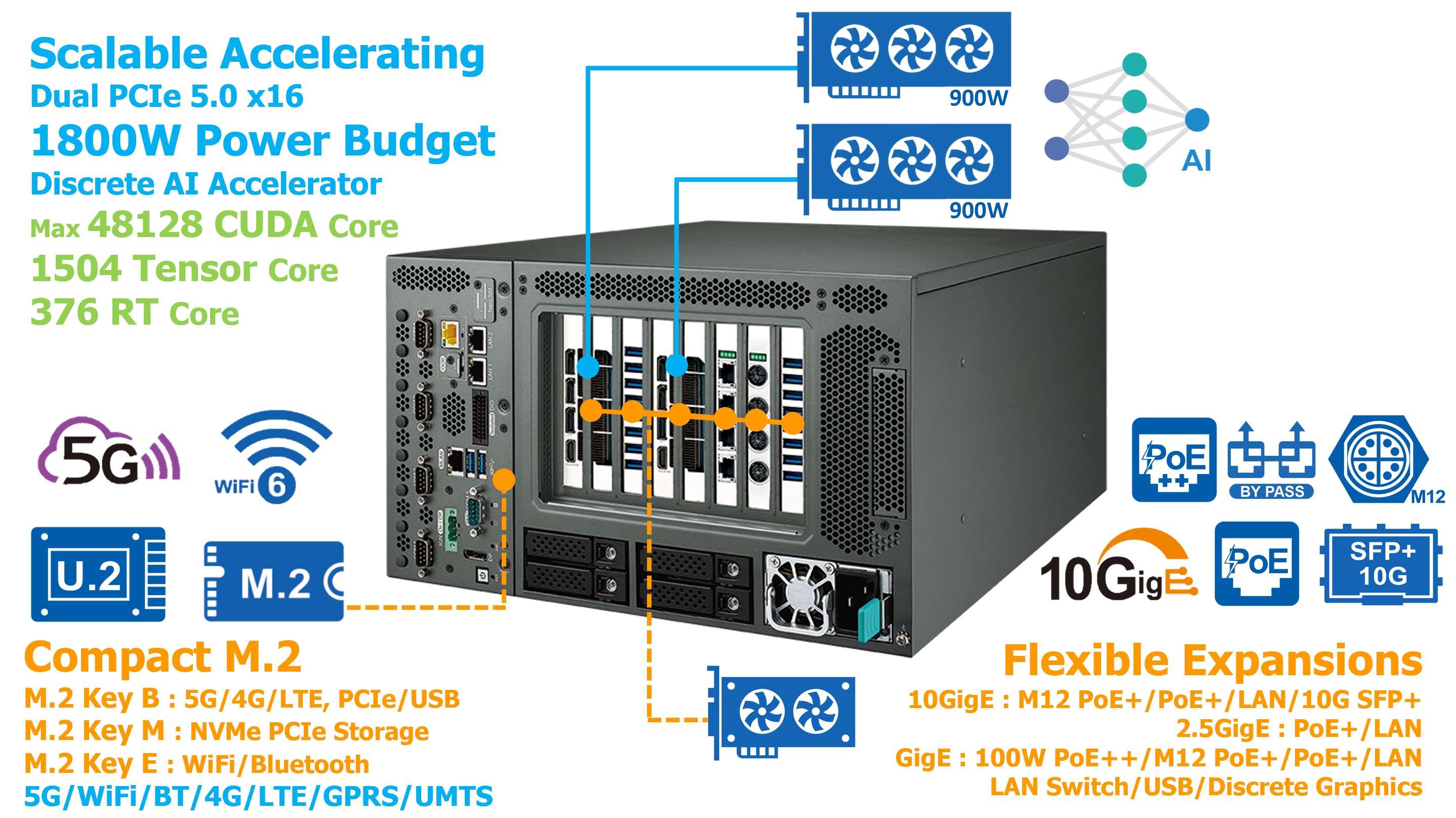

    • 2 PCIe 5.0 x16 slots with a total 1800W power budget, supporting up to dual 900W NVIDIA® or AMD 2-slot graphics cards, and 4 PCIe 5.0 x8 slots for expansion cards
    • Multiple storage devices: 4 M.2 Key M and 4 Front-access U.2

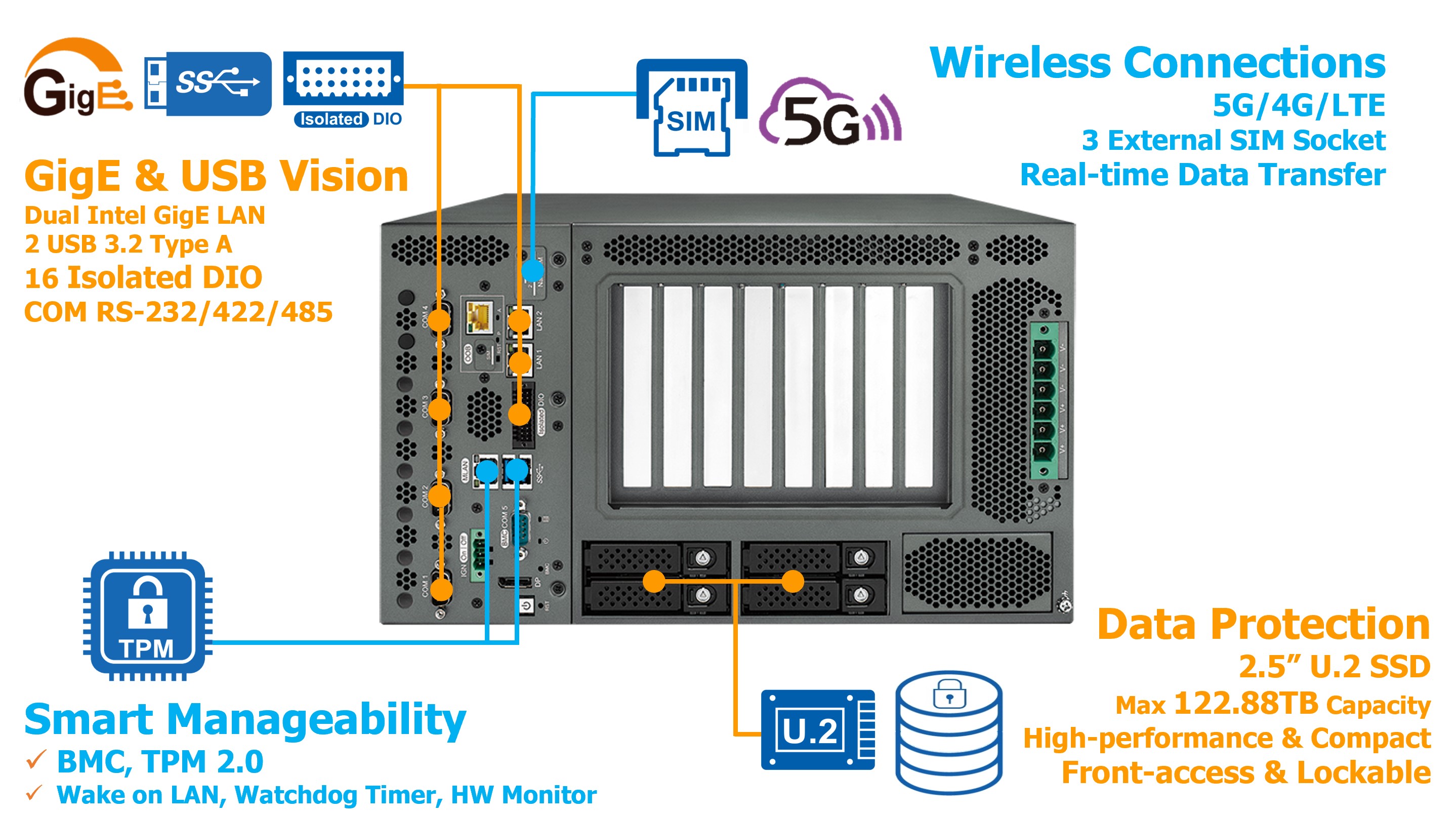

    • 2 LAN, 2 USB, 5 COM, 16-bit DIO, 5G/WiFi 6/4G/LTE/GPRS/UMTS, TPM 2.0 and OOB remote management

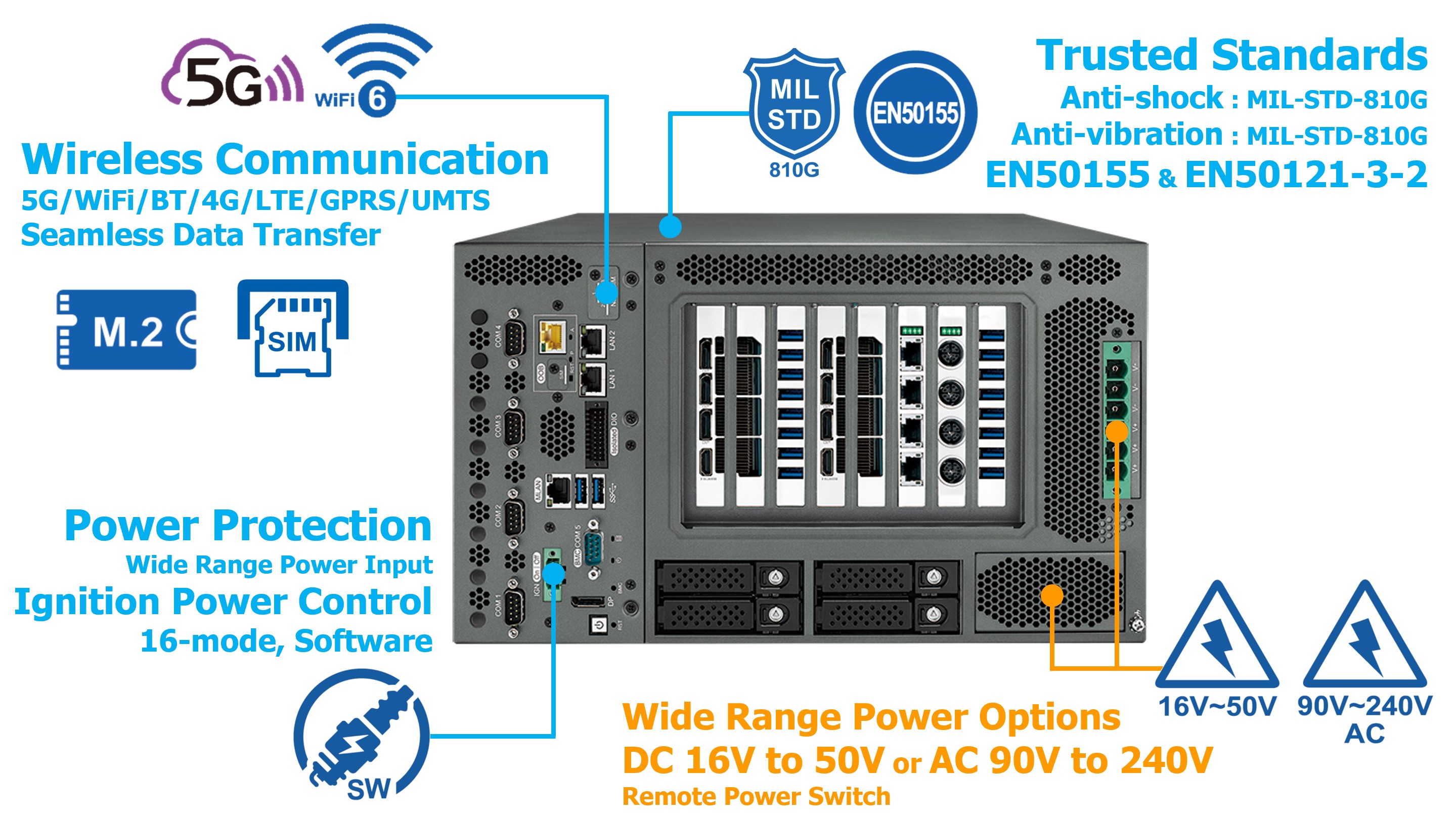

    • DC 16V to 50V, Software Ignition Control

概要

    The Vecow ICS-2000 is a high-performance, server-grade computing platform powered by AMD’s 4th Gen EPYC™ 8004 Siena processors. It supports up to 64 cores with a maximum TDP of 255W, making it an ideal solution for demanding edge computing applications. The system accommodates up to six DDR5 4800MHz, delivering a total capacity of 768GB for superior processing efficiency.

    Engineered for expandability and connectivity, the ICS-2000 offers six PCIe slots, including two PCIe Gen 5.0 x16 and four PCIe Gen 5.0 x8 slots. Its versatile I/O options include two GigE LAN ports, one management LAN (MLAN) port, two USB ports, and four COM ports, ensuring seamless integration into diverse industrial environments.

    For storage, the ICS-2000 features four M.2 slots and four front-access U.2 drive bays, providing ample capacity for high-speed data processing. Its flexible power input design supports both DC (16V–50V) and AC (90V–240V) sources, making it suitable for a wide range of industrial and edge computing deployments.




スペック

System
Processor AMD EPYC™ 4th Gen 8004 "Siena" Server Processor
BIOS AMI
SIO IT8786E
Memory 6 DDR5 RDIMM 4800MHz, up to 768GB
OS Windows Server, Linux
I/O Interface
Serial
- 4 COM RS-232/422/485
- 1 COM RS-232
USB 2 USB 3.2 Gen1
Isolated DIO 16 Isolated DIO: 8 DI, 8 DO
Display VGA: Up to 1920 x 1080 @60Hz
LED Power, HDD, BMC
SIM Card  3 External Nano SIM Card Socket
Expansion
PCIe
- 2 PCIe x16 slot with PCIe 5.0 x16 signal
- 4 PCIe x16 slot with PCIe 5.0 x8 signal
M.2
- 2 M.2 Key B Socket (3042/3052, PCIex1/USB3.0) with SIM
- 1 M.2 Key E Socket(2230, PCIex1)
mini PCIe 1 Full size Mini-PCIe socket (PCIex1/USB2) with SIM
Storage
U.2
4 U.2 front access tray (PCIe x4)
*M.2 supported by optional accessory
M.2 4 M.2 Key M (2280, PCIe 4.0 x4)
Ethernet
LAN 1 Intel® I350 GigE LAN
LAN 2 Intel® I350 GigE LAN
LAN 3 GigE MLAN for management (BMC)
Power
Power Input DC 16V to 50V
Power Interface 6-pin Terminal Block：V+, V+, V+, V-, V-, V-
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block
Others
TPM Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN supported
HW Monitor Monitoring temperature, voltages.
Auto throttling control when CPU overheats.
Mechanical
Dimension  345mm x 405mm x 200mm (13.58" x 15.94" x 7.87")
Weight 13.1Kg (28.88 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temp. -25°C to 45°C (-13°F to 113°F)
Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative humidity 95% @45°C
Shock / Vibration
- Operating, MIL-STD-810H
- Railway Applications: Rolling Stock Equipment, Shock and Vibration Tests
EMC CE, FCC, EN50155, EN50121-3-2



ダウンロード

型番 ファイル名 ファイルタイプ 更新日 ダウンロード

お見積り

型番 詳細内容 数量
ICS-2000 AMD EPYC™ 8004 "Siena" Processor Edge AI Server, 2 PCIex16, 4 PCIex8, 2 U.2 Tray, DC 16V to 50V
EPYC Siena AMD EPYC 8224P Processor (2.55GHz, 24-core)
DDR5 96G Certified DDR5 96GB 4800MHz RAM
DDR5 64G Certified DDR5 64GB 4800MHz RAM
DDR5 32G Certified DDR5 32GB 5600MHz/4800MHz RAM
DDR5 16G Certified DDR5 16GB 5600MHz/4800MHz RAM
PWS-1000W-24V 1000W, 24V, 90V AC to 264V AC Power Supply
PWS-1500W-24V 1500W, 24V, 90V AC to 264V AC Power Supply
PWS-3000W-24V 3000W, 24V, 90V AC to 264V AC Power Supply
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting
M.2 Storage Module M.2 Key M/Key B PCIe Storage Module
U.2 Storage Module U.2 Storage Module
M.2 to U.2 Module M.2 to U.2 Module
5G Module 5G Module with Antenna
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
